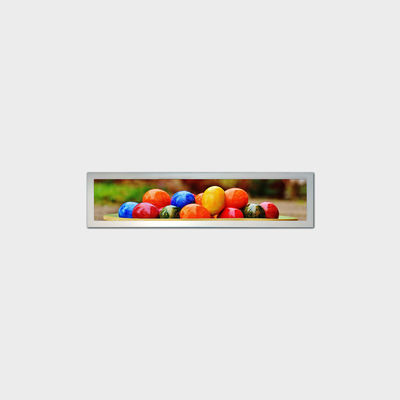

13.8 inch Bar Type Cutting Display Support Smart Home Application Touch Panel Options
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| نام | نمایشگر ال‌سی‌دی TFT میله‌ای | اندازه تابلو | 13.8" |
|---|---|---|---|
| وضوح | 1920*358 | روشنایی | 700 (نوع) |
| دمای عملیاتی | 0 ~ 50 ℃ | منطقه فعال | 344.16 * 61.17 میلی متر |
| ابعاد طرح | 371.5*90.1*12.7mm | ||
| برجسته کردن | 13.8 inch bar type LCD display,smart home touch panel display,bar type cutting display panel,smart home touch panel display,bar type cutting display panel |
||
توضیحات محصول
13.8 inch Bar Type Cutting Display Support Smart Home Application Touch Panel Options
Product Advantages
- 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
- Advanced cutting technology to ensure the yield and precision.
- High reliability with same features as original panel.
- High Anti-vibration.
- Brightness can be customized (500-2500nit).
- Long life time 50K hours(Typ), up to 80K hours.
Product Applications
- Commercial signage: Advertising and Price Shelves.
- Public transportation: Bill board for Bus/Metro and light rail.
- Guidance board, Lift advertising board.
- Financial services. Bank call notice board.
- Name card.
- Advertising board on taxi.
Specifications
LCMA-RX0138TQ01-C070
| Brand | Rogin |
|---|---|
| Series | Bar Type TFT LCD Display |
| Panel Size | 13.8 inch |
| Model | LCMA-RX0138TQ01-C070 |
| Brightness | 700nits |
| Resolution | 1920*358 |
| Active Area | 344.16*61.17mm |
| Overall Size | 371.5*90.1*12.7mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 3000:1 |
| Touch Panel | Without |
| Operating Temperature | 0-50 ℃ |
