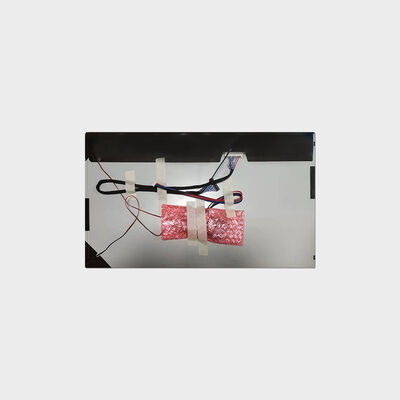

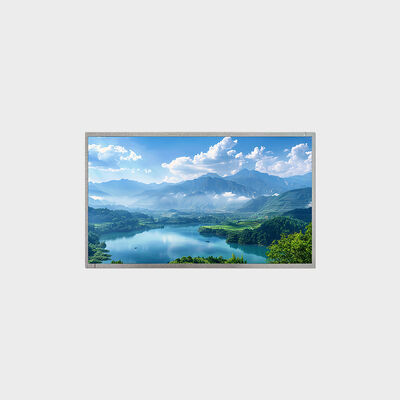

21.5 Inch TFT Display Support Waterproof Rated LCD for Outdoor Measurement Devices
جزئیات محصول
| نام | صفحه نمایش 21.5 اینچی TFT LCD | اندازه پنل | 21.5 اینچ |
|---|---|---|---|
| قطعنامه | 1920*1080 | روشنایی | 1000 (نوع) |
| نسبت تصویر | 16:9 | منطقه فعال | 476.64 * 268.11 میلی متر |
| ابعاد طرح | 495.6*292.2*9.5mm | رابط | LVDS (2 ch، 8 بیت) |
| برجسته کردن | 21.5 inch waterproof LCD display,outdoor measurement TFT display,high brightness LCD for devices,outdoor measurement TFT display,high brightness LCD for devices |
||
توضیحات محصول
21.5 Inch TFT Display Support Waterproof Rated LCD for Outdoor Measurement Devices
Product Advantages
- Brightness customization 700-5000 cd/m²
- Outdoor sunlight readable
- Low power consumption
- High uniformity up to 85%
- Long lifetime: 50K hours (Typ), up to 80K hours
- Aluminium backlight structure with good heat dissipation
- Wide temperature range: -30°C to 80°C
- High shock resistance and high stability
Product Applications
- Bus Station Signage Board
- Intelligent Charging Pile
- Outdoor Electronic News Reading Board
- Intelligent Express Cabinet
- Vending Machine
- Commercial Advertising Machine
- Attractions Information Inquiry Machine
- Community Information Board
Specifications
Model: LCMA-RX0215GB16-C100
| Brand | Rogin |
|---|---|
| Series | High Brightness LCD Display |
| Panel Size (inch) | 21.5 |
| Model | LCMA-RX0215GB16-C100 |
| Brightness | 1000 nits |
| Resolution | 1920 × 1080 |
| Active Area | 476.64 × 268.11 mm |
| Overall Size | 495.6 × 292.2 × 9.5 mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | LVDS (2 ch, 8-bit) |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | -20°C to 70°C |
