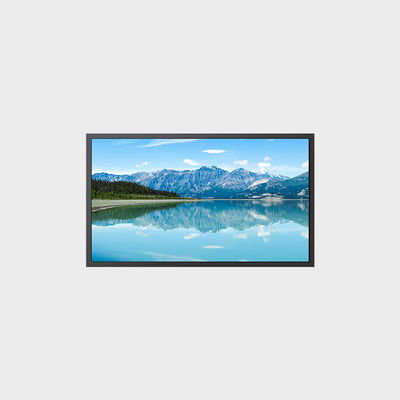

32 Inch TFT Display With High Lumin Support Touch Panel Customization LCMA-RX0320GI04-C100
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| نام | نمایشگر LCD TFT | اندازه تابلو | 32 " |
|---|---|---|---|
| وضوح | 3840*2160 | روشنایی | 1000 (تایپ) |
| دمای عملیاتی | 0 ~ 50 ℃ | منطقه فعال | 698.4 * 392.85 میلی متر |
| ابعاد طرح | 751.5*446.01*30.5mm | ||
| برجسته کردن | 32 inch TFT display with touch panel,high brightness LCD display with customization,TFT display with high luminance support,high brightness LCD display with customization,TFT display with high luminance support |
||
توضیحات محصول
32 Inch TFT Display With High Lumin Support Touch Panel Customization LCMA-RX0320GI04-C100
Product Attributes
| Attribute | Value |
|---|---|
| Name | TFT LCD Display |
| Panel Size | 32" |
| Resolution | 3840*2160 |
| Brightness | 1000 (Typ.) |
| Operating Temp. | 0~50℃ |
| Active Area | 698.4*392.85mm |
| Outline Dimension | 751.5*446.01*30.5mm |
Product Description
32 Inch TFT Display With High Lumin Solution Support LVDS Interface LCMA-RX0320GI04-C100
Product Advantages
- 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
- Advanced cutting technology to ensure the yield and precision.
- High reliability with same features as original panel.
- High Anti-vibration.
- Brightness can be customized (500-2500nit).
- Long life time 50K hours(Typ), up to 80K hours.
Product Applications
- Commercial signage: Advertising and Price Shelves.
- Public transportation: Bill board for Bus/Metro and light rail.
- Guidance board, Lift advertising board.
- Financial services. Bank call notice board.
- Name card.
- Advertising board on taxi.
Specifications
LCMA-RX0320GI04-C100
| Brand | Rogin |
|---|---|
| Series | LCD Display |
| Panel Size | 32 inch |
| Model | LCMA-RX0320GI04-C100 |
| Brightness | 1000 |
| Power Consumption | 131W |
| Resolution | 3840*2160 |
| Active Area | 698.4*392.85mm |
| Overall Size | 751.5*446.01*30.5mm |
| Viewing Angle | 89/89/89/89 |
| Interface Definition | 51pins V-by-One 8 lane |
| Backlight Type | WLED |
| Contrast Ratio | 3000:1 |
| Aspect Ratio | 16:9 |
| Touch Panel | Without |
| Operating Temperature | 0~50 ℃ |
