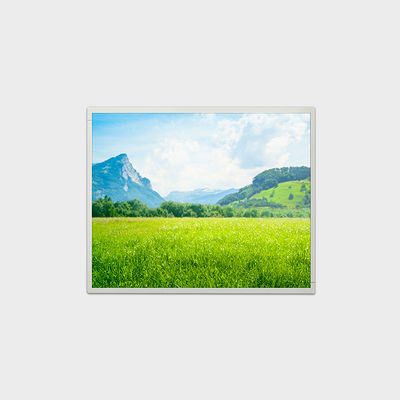

19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Soltuion
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| نام | نمایشگر LCD TFT | اندازه تابلو | 19 |
|---|---|---|---|
| وضوح | 1280*1024 | روشنایی | 500 (تایپ) |
| دمای عملیاتی | 0 ~ 50 ℃ | منطقه فعال | 374.784*299.82mm |
| ابعاد طرح | 396*324*10.4 میلی متر | ||
| برجسته کردن | 19 inch TFT LCD display,LVDS interface TFT display,1280x1024 resolution LCD screen,LVDS interface TFT display,1280x1024 resolution LCD screen |
||
توضیحات محصول
19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Solution
19 inch TFT Display LVDS Interface With 1280*1024 Resolution Support Customized Solution
Product Advantage
- 3 set cutting machines, 2 advanced cutting production lines, the longest one can be cut to 1.7m (75 inch cutting).
- Advanced cutting technology to ensure the yield and precision.
- High reliability with same features as original panel.
- High Anti-vibration.
- Brightness can be customized (500-2500nit).
- Long life time 50K hours(Typ), up to 80K hours.
Product Application
- Commercial signage: Advertising and Price Shelves.
- Public transportation: Bill board for Bus/Metro and light rail.
- Guidance board, Lift advertising board.
- Financial services. Bank call notice board.
- Name card.
- Advertising board on taxi.
Specifications
LCMA-RX0190GB01-C050
| Brand | Rogin |
|---|---|
| Series | TFT LCD Display |
| Panel Size | 19 inch |
| Model | LCMA-RX0190GB01-C050 |
| Brightness | 500 |
| Resolution | 1280*1024 |
| Active Area | 374.784*299.82mm |
| Overall Size | 396*324*10.4mm |
| Viewing Angle | 85/85/80/80 |
| Interface Definition | LVDS |
| Backlight Type | WLED |
| Contrast Ratio | 1000:1 |
| Touch Panel | Without |
| Operating Temperature | 0-50 ℃ |
